Product Overview
Blade Module Chassis capabilities
Each Blade Module Chassis provides the power, connectivity, and scalability to quickly and easily build cryptographic infrastructure at the scale your business requires now and in the future. When deploying cryptographic infrastructure there is no one size fits all as each organization has unique operational requirements.
Crypto4A's unique Blade Module architecture combined with several Blade Module Chassis options allows organizations to customize their deployment to meet their use case and requirements while also providing simple scalability to meet future demand from the business.
All of our QxBMC™ devices provide:
- Full compatibility with all current and future Blade Modules. Customers can mix and match different blade modules to create unique solutions that meet their unique requirements.
QxBMC™ devices provide redundant power through either additional power supplies or built in backup batteries to ensure continuous operation of critical cryptographic infrastructure.
Crypto4A Lights Out (CLO) management interface provides connectivity that allows administrators to monitor, manage, configure, and troubleshoot servers remotely, even if the operating system is down or the device is powered off.
Customers can easily add additional blade modules to scale up their deployment to meet demand as their business grows.
Compare Products
 |  |  | |
|---|---|---|---|
| Model | QxBMC-1 | QxBMC-3 | QxBMC-12 (Coming Soon) |
| Capacity | 1× Blade Module | 3× Blade Modules | 12× Blade Modules |
| Form Factor | Desktop Chassis | 1RU 3 Blade Chassis | 4RU 12 Blade Chassis |
| CLO | Built in | Built in | Built in |
| Integrated Network Card | No | No | Dual Network 40G Switch Card with (4) 10G SFP+ Interface |
| Internal Power Supply | Extended battery life: up to 5 years of additional unpowered standby | Dual redundant, hot-swappable power supplies | Dual redundant, hot-swappable power supplies |
| Input Voltage | 100-240V, 50-60Hz (external AC power supply included) | 100-240V, 50-60Hz | Coming Soon |
| Power Consumption | With QxHSM™ installed: 36W idle, 80W under load | With 3 x QxHSM™: 108W idle, 240W under load | Coming Soon |
| Dimensions | 466mm x 203mm x 44mm (18.375” x 8” x 1.75”) | 762mm x 482mm x 44mm (30” x 19” x 1.75”) | Coming Soon |
| Weight | 2.4kg (5.29lbs) | 8.75kg (19.29lbs) | Coming Soon |
| Operating Temperature | 0°C – 40°C ambient | 0°C – 40°C ambient | Coming Soon |
| Storage Temperature | -20°C – 70°C | -20°C – 70°C | Coming Soon |

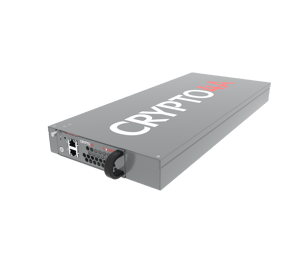

QxBMC-1™
The QxBMC-1™ desktop chassis delivers a secure, self-contained environment for development, testing, and space constrained deployments. Ideal for offline root HSM and pilot projects requiring a fully functional quantum-safe platform in a compact form factor.

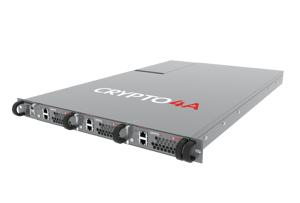

QxBMC-3™
The QxBMC-3™ 1U three-blade chassis delivers optimized performance, reliability, and scalability for enterprise and government environments. Designed for modular expansion and simplified management, it provides a secure, flexible foundation for deploying and managing cryptographic workloads in production environments.

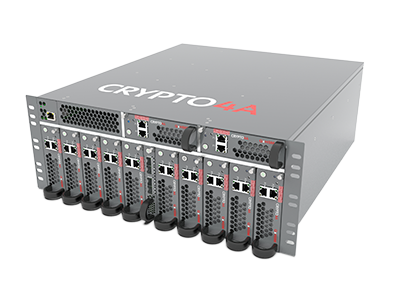

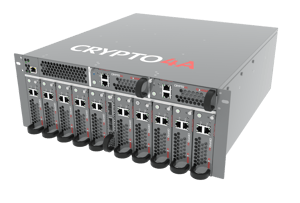

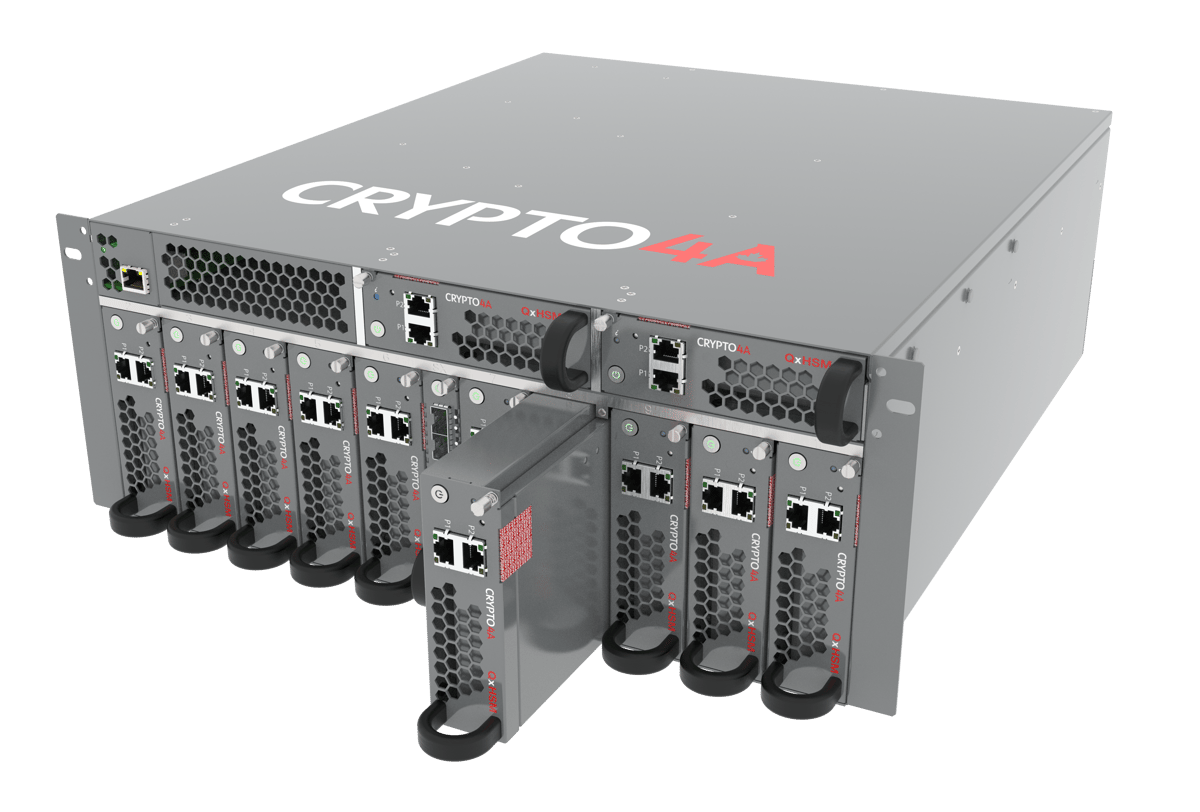

QxBMC-12™
Coming Soon
The QxBMC-12™ 4U twelve-blade chassis delivers maximum density, resilience, and throughput for large-scale data center and cloud environments. Engineered for high availability and centralized management, it provides the foundation for sovereign cryptographic infrastructure at scale.
